MLA-CL-P500 / P1000
Mobile power for demanding surface preparation.
Water-cooled, trolley-case pulsed laser cleaning for rust, oil, paint, coatings and oxide removal. A compact cabinet combines the laser source, control system and protected fiber delivery for workshop or on-site work.
Remove the layer. Preserve the surface.
Use pulsed laser cleaning to evaluate rust, oil, paint, coatings and oxides on metal components, moulds, tools and selected wood-restoration work. Parameters should always be verified on a representative sample for the material, contamination and finish requirement.
Rust and oxide removal
Assess controlled cleaning on steel structures, cast iron, stainless steel, aluminium and production equipment.
Paint and oil cleaning
Evaluate paint, surface residue, oil and selected coatings without blasting media or chemical stripper.
Detailed surface work
Test wood paint removal, mould cleaning and intricate surfaces with settings matched to the actual workpiece.
All key systems travel together.
Laser source, controls, fiber cable and selected accessories are housed in one wheeled cabinet for practical positioning around the job. The protected cable route and integrated tool storage support day-to-day use.
- Universal 220 V input
- Wheeled cabinet for on-site positioning
- Protected fiber cable routing
- Handheld head with automated-operation option
A cleaner process to validate against your application.
Non-contact process
Laser energy targets the unwanted surface layer. Confirm results against your substrate and finish acceptance criteria.
Lower consumables
No blasting media or chemical stripper is used in the laser cleaning step.
Flexible operation
Choose handheld work for access and adaptability, or discuss integration for repeatable processes.
Preset patterns
Adjustable scan graphics support different coverage areas and cleaning paths.
From restoration to industrial maintenance.
Bring the mobile cabinet to the part, or place it beside a fixed cleaning station. The appropriate model and process depend on the material response, surface area and required throughput.
MLA-CL-P500 / P1000 specifications
| Parameter | MLA-CL-P500 | MLA-CL-P1000 |
|---|---|---|
| Model | MLA-CL-P500 | MLA-CL-P1000 |
| Power | 500 W | 1000 W |
| Voltage | 220 V | 220 V |
| Cooling | Water cooling | Water cooling |

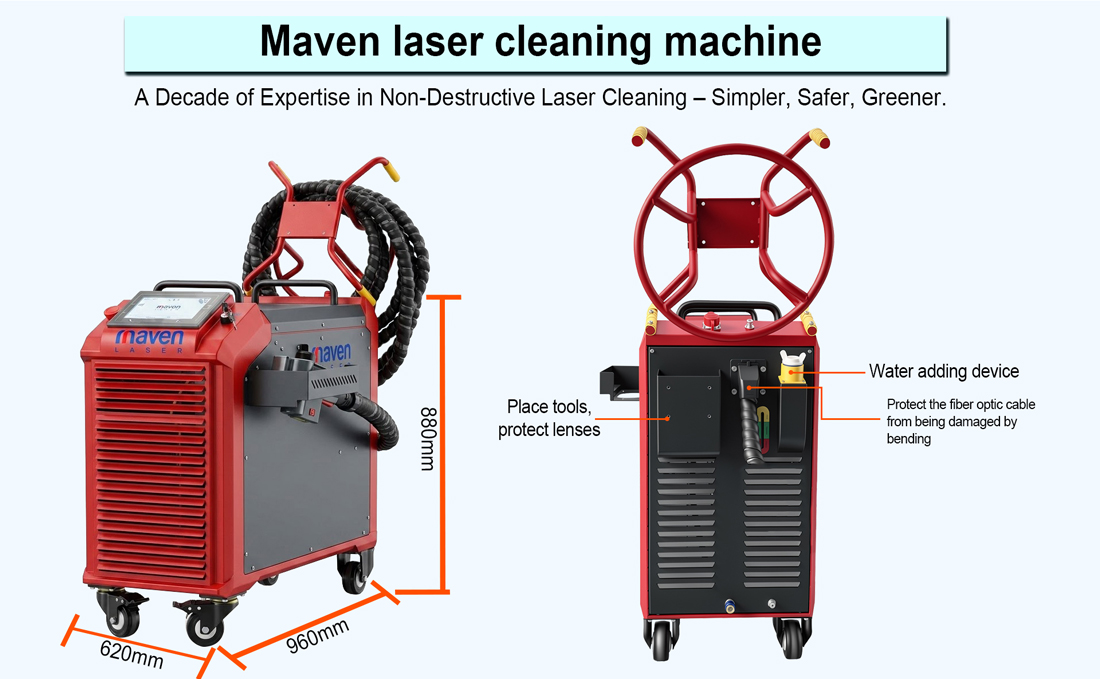

| Machine size | 960 × 620 × 880 mm | 960 × 620 × 880 mm |
| Net weight | 90 kg | 105 kg |
| Gross weight | 105 kg | 125 kg |
| Operation | Handheld / automatic | Handheld / automatic |
Final delivered configuration, electrical connection, accessories and process result are confirmed in the quotation and sample evaluation.
Designed for practical cleaning work.
The rear water-fill point, protected cable management and integrated storage help keep routine work organized. The trolley design positions the system where the surface needs attention.
Discuss your configuration ↗
Before selecting a pulsed cleaner.
Can this machine clean both metal and wood?
It can be evaluated for rust, paint, oil and coatings on metals, as well as selected wood paint-removal and restoration work. A representative sample test is essential, especially for valuable or sensitive materials.
Which model should I select?
Choose between 500 W and 1000 W based on the material, contamination layer, target area and throughput. We recommend a sample evaluation before ordering.
Can it be integrated with a robot?
The configuration supports handheld or automatic operation. Share your cell layout, handling method and required cycle time for an integration assessment.
Tell us what you need to clean.
Share the material, contamination, part size, workload and required finish. We will help define the appropriate configuration and sample-test route.
Prepare a product enquiry
